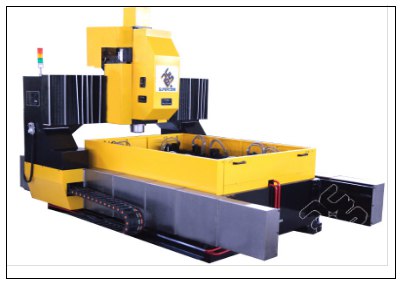

CNC Steel Plate Drilling Operation

Supertime R & D Department

In today’s society with rapid economic development, intelligent CNC machines are of great demand in various industries, also it’s becoming an indicator of a company’s competitiveness.

Jinan Supertime Technology Co.,Ltd as a leader in CNC machine design and manufacturer, realizes wide range of CNC machine solution for steel fabrication, from angle punching and drilling line, beam line, plate drilling, band saw to newly patented boiler & tube sheet drilling machines.

CNC plate drilling machine has advantages of high processing efficiency and accuracy, it provides conditions for manufacturing industries. Proper operation will surely prolong machine longevity and reduce human labor.

1. Preparation before operation

Connect to power supply, drilling machine test running, inspect if drilling head, chip conveyor power, clamp cylinder, cooling system etc work normally.

2. Drilling feeding speed

Choose proper drilling power head according to processing diameter of workpiece, confirm diameter, then choose proper spindle rotation speed and feeding speed. Feeding speed regulation is controlled by hydraulic system.

Drilling speed of ordinary CNC plate drilling designed by Supertime is 20m/min,

if special needs, can contact with us.

3. Manual operation

Oil bump switch, clamp cylinder, spindle up and down movement, cooling bump movement are operated manually.

More info:
Jinan Supertime Technology Co.,Ltd
CNC machine design & manufacture specialist
www.supertimecncmachines.com
info@jntime.com

CNC Tube Sheet & Baffle Plate Drilling

Supertime R & D Department

Thinking about which CNC tube plate drilling to choose?

Which manufacturer has stable quality?

Want to get reliable and better after-sale service?

Ordered by Hangzhou Boiler Group (HBG):

Established in 1955, mainly engages in production, sales and installation of boilers, pressure vessel, environmental protection equipment etc. Ordered from Jinan Supertime Technology Co.,Ltd JXZ0305 CNC boiler plate drilling machine. Equipment is now under perfect running state.

Video：

http://bit.ly/2cMeAYq

Jinan Supertime Technology Co.,Ltd is identified as one of distinguished manufacturers and exporters of CNC tube sheet and baffle stack drilling machines. Our various CNC machines are widely acknowledged in domestic and oversea markets, with machine sturdy construction, perfect performance, low failure rate and long operational life.

Complete solutions for boiler industry.

Supertime drilling & machining:

Tube sheet drilling

Baffle drilling

Heat exchanger drilling

Flange drilling

Plate drilling

JX0305 Technical specifications:

. Drilling dia.:φ133-φ350mm

. Workpiece length: 5-10m

. Mainly used for tube sheet drilling in boiler barrel industry and welding basin shaped holes.

. Can use twist drill or inner cooling carbide drill for high speed drilling.

. No need for manual scribe, greatly improves precision and efficiency, realizes drilling automation.

. Two drilling heads can work independently or simultaneously.

More info:
Jinan Supertime Technology Co.,Ltd
CNC machine design & manufacture specialist
www.supertimecncmachines.com
info@jntime.com

Double Worktables CNC Plate Drilling

Supertime R & D Department

Main application:

Widely used in construction, bridge, steel tower etc, for plate drilling, also for drilling tube plate, baffle stack, flange in boiler and petroleum industries.

Specifications:

1. Double worktables, greatly improves processing efficiency.

2. Easy programming, operation and maintenance.

3. Machine frame is steel structure welded, after aging treatment and finite element analysis, better rigidity and stability.

4. Hydraulic feeding drilling head, stepless adjustment speed.

5. Automatic chip collector, circular cooling system, all components are world famous brands.

Complete solutions:

CJ1610Z (workpiece size 1600x1000mm), CJ1616Z (1600x1600mm), CJ2016Z(2000x1600mm), CJ3016Z (3000x1600mm).

Max. Workpiece thickness: 80mm (100mm can overlap for thinner steel plate).

Drilling speed: 160-560rpm (stepless adjustment).

Working environment:

. Workshop temperature should be 4-45℃, relative humidity less than 90% (No condensation).

. Equipment should be installed below altitude of 2000m.

. Away from electromagnetic interference

. Keep away from dust, flammable, explosive and corrosive liquids.

More info:
Jinan Supertime Technology Co.,Ltd

CNC machine design & manufacture specialist
www.supertimecncmachines.com
info@jntime.com

Double Worktables CNC Plate Drilling

Supertime R & D Department

Main application:

Widely used in construction, bridge, steel tower etc, for plate drilling, also for drilling tube plate, baffle stack, flange in boiler and petroleum industries.

Specifications:

1. Double worktables, greatly improves processing efficiency.

2. Easy programming, operation and maintenance.

3. Machine frame is steel structure welded, after aging treatment and finite element analysis, better rigidity and stability.

4. Hydraulic feeding drilling head, stepless adjustment speed.

5. Automatic chip collector, circular cooling system, all components are world famous brands.

Complete solutions:

CJ1610Z (workpiece size 1600x1000mm), CJ1616Z (1600x1600mm), CJ2016Z(2000x1600mm), CJ3016Z (3000x1600mm).

Max. Workpiece thickness: 80mm (100mm can overlap for thinner steel plate).

Drilling speed: 160-560rpm (stepless adjustment).

Working environment:

. Workshop temperature should be 4-45℃, relative humidity less than 90% (No condensation).

. Equipment should be installed below altitude of 2000m.

. Away from electromagnetic interference

. Keep away from dust, flammable, explosive and corrosive liquids.

More info:
Jinan Supertime Technology Co.,Ltd

CNC machine design & manufacture specialist
www.supertimecncmachines.com
info@jntime.com

Powerful Productivity of CNC Angle line

Supertime Technical Department

CNC angle punching marking and shearing machine designed by Jinan Supertime Technology Co.,Ltd is a powerful equipment for angle processing.

Video:

https://youtu.be/7APSprKxp2U

Highlights of JX0808:

. Angle size range decreases, processing allowance is 30x30x3-75x75x8mm.

. Processing efficiency is greatly increased. 3 times than ordinary machines.

Productivity:

Take JX0808 for example.

Punching 45 times/min

More than 870kg/h for angle of 40x4mm

More than 1000kg/h for angle of 40x5mm

30 angles/h of 12m long and 40mm

2 min/1 angle

Technical Parameters:

Angle size: 30x30x3-75x75x8mm

Max. angle length: 12000mm

Max. punching dia.: φ26mm

Punching force: 400kN

Marking force: 600kN

Shearing force: 600kN

Letter group & size: 4 groups (14x10x19mm)

More info:

Jinan Supertime Technology Co.,Ltd

CNC machine design & manufacture specialist

www.supertimecncmachines.com

info@jntime.com

CNC Beam Line--Efficiency Increased by 3 Times

Supertime Design Department

Brief view:
Structural beam processing is realized by beam line drilling.
CNC beam drilling machine is widely used in construction, bridge, girder, and other steel structure industries.

New market demands:
With rapid development of steel structure industry, beam line equipment should meet market demands, including high drilling accuracy and high efficiency.
While traditional beam line is already out of style, Supertime CNC beam drilling can increase processing efficiency by 3 times and is best selling in domestic and oversea markets.

Supertime beam drilling advantages:
1: machine frame is steel plate welded, after aging treatment and finite element analysis, machine has better stability and accuracy.
2: High speed drilling machine adopts inner cooling BT40 precision spindle, can equip carbide drill or twist drill, top drilling speed 6000rpm.
3: Drilling cost $0.015/ 1 hole.
4: Dolly feeding, ensures high drilling accuracy.
5: Automatic clamping device, avoids workpiece vibration during drilling, this way greatly improved drilling precision.
6: When drilling holes of various diameters, can equip ATC (automatic tools changing), efficiency is greatly improved, can save manual labor.

More infomation, please contact:
Jinan Supertime Technology Co., Ltd.
www.jntime.com

Most Affordable & Unique Designed CNC Angle Line

Supertime Technical Department

Delivery to customer:

CNC angle line JX0808 designed and manufactured by Jinan Supertime Technology Co.,Ltd was successfully installed in Thailand.

Supertime CNC angle line is especially designed for for structural steel fabrication, this is the most affordable angle line and realizes angle punching, marking and shearing functions. Greatly eliminates human labor. It is capable of processing angle of size 30x30x3-75x75x8mm.

Technical Parameters:

Angle size: 30x30x3-75x75x8mm

Max. angle length: 12000mm

Max. punching dia.: φ26mm

Punching force: 400kN

Marking force: 600kN

Shearing force: 600kN

Letter group & size: 4 groups (14x10x19mm)

! Safe Operation Standard:

CNC angle line should be installed in fully enclosed workshop, avoid rain, dust and  corrosive gases.

During machine running, temperature should be controlled 10℃-40℃, humidity less than 75%.

Voltage be controlled ±10% of rated value, frequency within 3% of rated value. Ar pressure of compressed air no less than 0.6MPa.

Add N46 oil to oil tank of hydraulic system, use 20 μm filter. Oil quantity be controlled within indication range.

More info:

Jinan Supertime Technology Co.,Ltd

CNC machine design & manufacture specialist

www.jntime.com

info@jntime.com

Efficiency Increased by 5 times-- CNC Plate Drilling

Supertime Technical Department

Still worried about production efficiency?

Still looking for a cost-saving machine?

Jinan Supertime Technology Co.,Ltd offers you complete plate drilling solutions. Supertime CJ1616HZ is a high speed drilling machine (up to 6000rpm) specially designed for automatic drilling of plates to a considerable thickness of 120mm. Processing efficiency increased by 3-5 times.

Video:

http://bit.ly/2d0HOEW

Delicate and simple structure, easy operation and maintenance.

Rigid and sturdy electro-welded plate frame.

Carries out driling operation (drilling through hole, blind hole & step hole), also can mill, mark, scribe.

Powerful BT40 spindle, drilling speed up to 6000rpm. Can equip twist or carbide drill.

With ATC (Automatic tool changing device).

Automatic coordination for plate movement of size 1600x1600mm,thickness max.120mm, with re-position function.

Max. drilling depth φ40mm.

Siemens 808D CNC system, stable cooperation with Supertime.

More info:

Jinan Supertime Technology Co.,Ltd

CNC machine design & manufacture specialist

www.jntime.com

info@jntime.com

Safety Operation Specifications of CNC Angle Line

Supertime Technical Department

About CNC Angle line:

The unique patented design of JX series CNC angle line equipment by Jinan Supertime Technology Co.,Ltd is a high efficiency angle processing machine.

A popular equipment widely used in power transmission, bridge, railway, construction etc

A most affordable and compact angle line. Realizes punching/drilling, marking and shearing functions.

Necessity of safety operation:

Properly operate, implement maintenance and safety operation procedures are necessary for prolonging CNC angle line equipment longevity, and necessary condition of safety production.

The following 14 procedures are for your reference.

Safety Operation Specifications:

1. Operator must go on training, know well angle line equipment operation instructions and machine structural performance.

2. Since angle line equipment has complex structure, and belongs to large machine, operators should be certificated.

3. Computer controlled, operators should follow strictly operation instructions.

4. Air pressure should be over 0.35MPa, oil temperature over 65℃。When oil temperature is above 45℃, turn on cooling system.

5. Stay in post position when machine is running, otherwise should turn off switch.

6. Remove in time chips in order that machine runs well.

7. When equipment is running, stay away from rotation rack.

8. When workpiece on feeding part, shouldn’t turn on rotation rack; During clamp feeding and exit, shouldn’t turn on lift button; while during lift process, shouldn’t turn on drop button.

9. No pass trough safety bar.

10. During letters, punching die regulation, should press button accordingly.

11. Hydraulic system is preset in manufacturer’s workshop, when regulation is necessary, operator should be specialized.

12. Change hydraulic system regularly according to operation manual, non-filtered oil mustn’t be added to oil tank.

13. Input of private disk to computer is strictly prohibited, in case of virus.

14. Twisted angle shouldn’t be processed, otherwise causes error.

More technical or maintenance problems:

Jinan Supertime Technology Co.,Ltd
CNC machine design & manufacture specialist
www.jntime.com

info@jntime.com

CNC Tube Sheet Drilling & Baffle Stack Drilling

Supertime  R & D Department

Complete solutions for boiler industry.

Ordered by Hangzhou Boiler Group (HBG):

Established in 1955, mainly engages in production, sales and installation of boilers, pressure vessel, environmental protection equipment etc. Ordered from Jinan Supertime Technology Co.,Ltd JXZ0818 CNC boiler plate drilling machine.

JXZ0818 Technical advantages:

Replaces traditional processing flow, and traditional horizontal tube sheet drilling, greatly improves efficiency.

Double gantry movable drilling machine.
Two drills work independently or simultaneously.

Spindle rotation speed up to 3000rpm

Processing efficiency 3-5 times than ordinary ones.

Max. drilling dia.: φ90mm

CNC control, drill automation.

Overall size 25x3.5x4.2m

Total weight 100t, with advantage of high loading capacity.

Video:

http://bit.ly/2cMeAYq

Tailored machine design, your best choice!

According to customer different requirements, Jinan Supertime Technology Co.,Ltd offers you different models of tube sheet & baffle stack drilling machines.

JXZ0515/3

JXZ0815/3

JXZ3512/3

JXZ3515/3...

More info:
